Invertor trifazat on-grid/hibrid SUNGROW SH20T (20kW)

• Putere AC: 20000W
• Curent maxim AC: 30.4A
• Putere maxima panouri: 40000Wp
• Tensiune lucru MPPT: 150-950Vdc
• Tensiune pornire: 150Vdc
• Tip invertor: on-grid / hibrid, suporta acumulatori din seria SUNGROW SBR

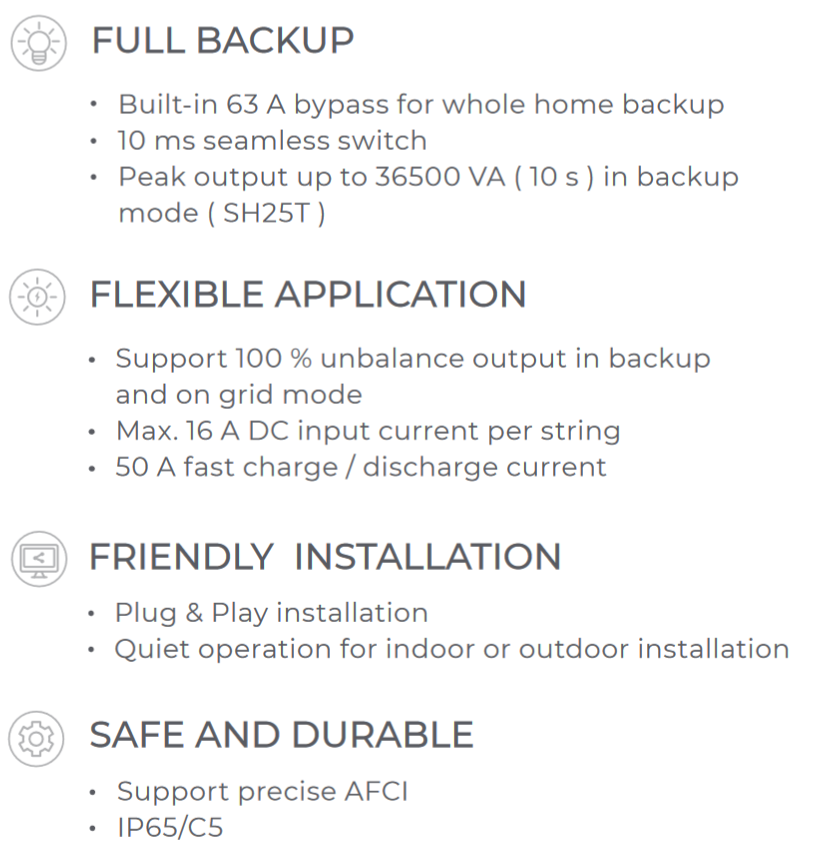

• Timp comutare in regim backup: <10ms
• ATENTIE: NU NECESITA TABLOU DE COMUTARE EXTERN (BACKUP-BOX), CA IN CAZUL INVERTOARELOR HUAWEI !!!
• Smart meter inclus: DTSU666, direct
• Dongle Wifi: inclus, in cutie


Product advantages

• Input voltage range from 150-950 V
• High efficiency of up to 98.1%
• Natural convection
• AC + DC overvoltage protection 2 integrated
• External connections, no need to open the inverter
• Integrated spirit level
• Potential-free contact (SG-ready contact) available (for: controlling e.g. heat pump)
• Noise emission 35dB (A)

Applications:

• Operation without battery as solely inverter
• DC operation with PV and battery
• AC operation without PV and with battery

Product features Sungrow Hybrid HV SH20T:

• Mains connection: 3 phase
• AC power: 20.0 kVA – emergency power via separate output
• Polarity protection
• MPP tracker: 3
• MPPT 1: 2 MC4 inputs; MPPT 2: 2 MC4 inputs, MPPT 3: 1 MC4 input
• Maximum input current: 80A ( 32A / 32A / 16A )
• Maximum short-circuit current Isc: 100A ( 40A / 40A / 20A)
• Battery connection
• Interfaces: Ethernet
• Cable cross section AC connection 6 - 10 mm² possible
• Cable cross section DC connection 4 - 6 mm² possible
• Dimensions: 620 x 480 x 245 mm (H x W x D)
• Weight: 38 kg
• Protection class: IP 65

Scope of delivery

• Inverter
• 3-phase Smart Meter Chint DTSU666-20 with 1x CT 100A/0.333V current transformer set included
• WiNet-S2 module Wi-Fi adapter
• Wall mount
• Expansion dowel set
• M4 screws and washers
• AC/Backup connector set
• Cable end clamp
• PV connector
• Crimp contact
• SUNCLIX connector set
• LAN connector
• COM connector
• RS485 cable
• OT connector
• Documents

Battery compability list

• Sungrow SBR096 – SBR256 battery
